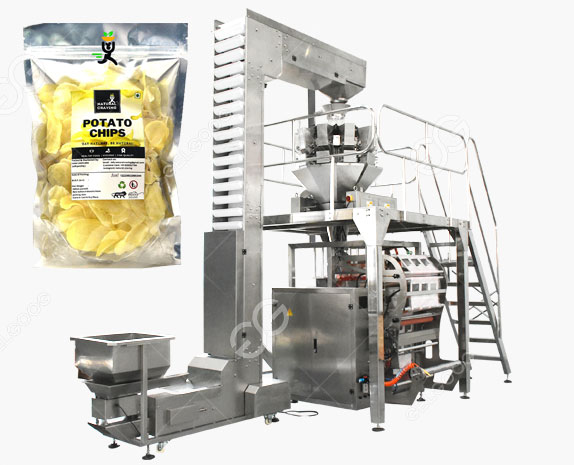

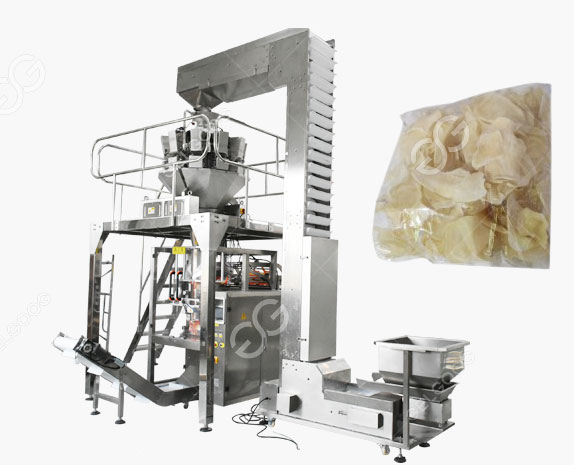

The dehydrated potato chip packing machine is also known as the multifunctional vertical automatic packing machine. It adopts a new generation of packing machine system to make the packing methods of dried potato chips more diversified. The new design concept and packing method change the traditional low-efficiency packing machine. The manual packing method, the designer considers from the user's point of view, the overall appearance of the potato chips packing machine is atmospheric, and it has the advantages of simple operation and convenient exchange.
More powerful and user-friendly.
Stable operation, superior cost performance;
Anti-rust and dust-proof design, simple operation;
All 304 stainless steel and 316 stainless steel surfaces are available;
Easy to use, multi-language touch screen control.
Model | GG-LK720 | GG-LK520 |
Film width | max 720mm | max 520mm |
Bag width | 110-350mm | 90-250mm |
Bag length | 100-420mm | 80-350mm |
Packing speed | 10-50bags/min | 10-70bags/min |
Packing range | 150-4000ml | 150-2000ml |
Film thickness | 0.04-0.10mm | 0.04-0.10mm |
Power | 4kw/220v 50-60Hz | 3kw/220v 50-60Hz |
Machine size | 1780*1350*2000mm | 1430*1200*1700mm |
Machine weight | 800kg | 650kg |
Air consumption | 0.8m³/min 0.8mpa | 0.4m³/min 0.6mpa |
Customized metal bag maker, by folding the film on both sides of the metal panel to form a bag shape.
Chinese and English bilingual touch screen, humanized design, all data is clear at a glance, intelligent system adjusts the parameters of the whole potato chips packing machine, and controls the operation of the machine.
Ten-head electronic combination scale, 304 stainless steel ten-head electronic combination scale, high-precision digital weighing sensor for weighing, automatic tracking and adjustment of vibration amplitude.
Motorized film-drawing reel, external film-feeding structure, multiple film rolls coordinate the film-drawing link, smooth film roll, prevent roll film deviation, packaging film installation and replacement is simple and fast.
Ribbon coding machine, thermal printing with tracking color code, adopts movable type loading and unloading structure, can code on packing film of various materials.
End sealing and cutting area, constant temperature heat sealing cutter, seal the front and back ends of the packaged product to avoid curling or loopholes in the sealing position.
