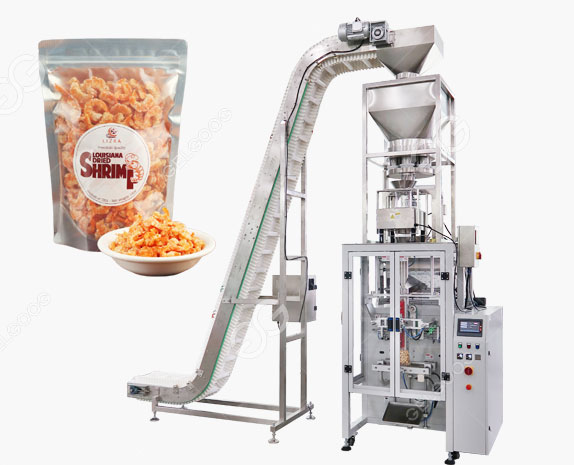

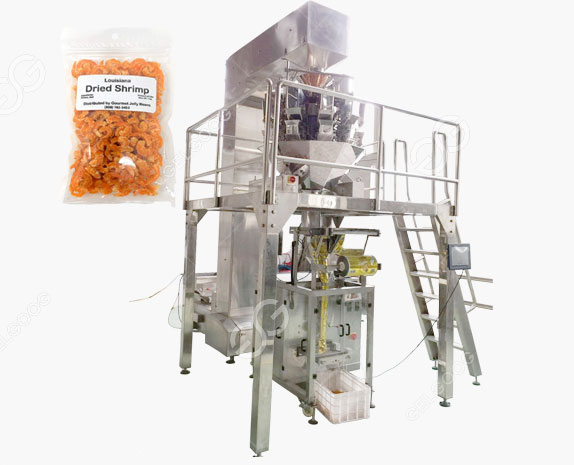

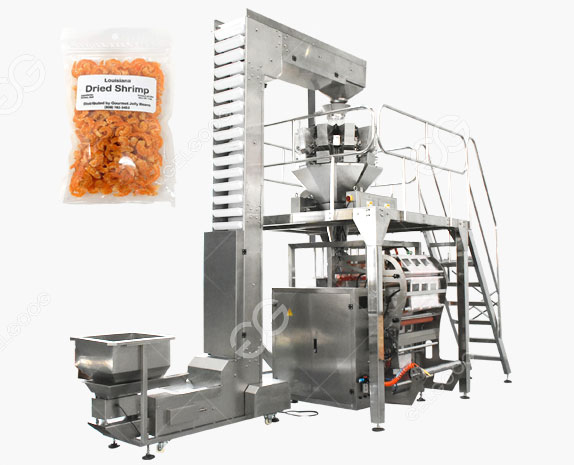

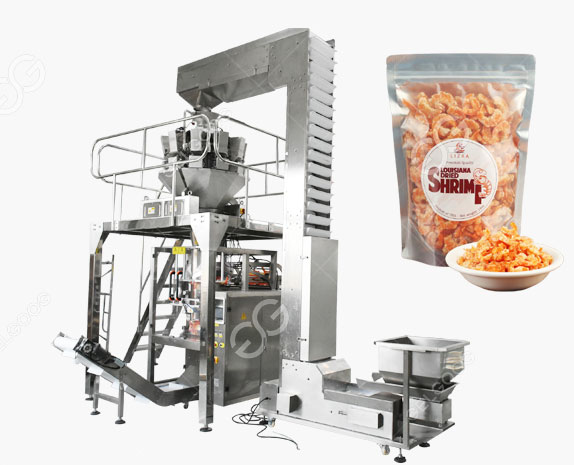

Dried shrimp packaging machine is also called weighing and packaging machine, which uses weighing method to ensure the quality of dried shrimp to be packaged, and incorporates the elements of automatic packaging to make the packaging process of dried shrimp more smooth. The dried shrimp packaging machine has a series of automatic functions such as automatic feeding, metering, bag making, filling, sealing, date printing and finished product output. It is suitable for materials such as dried shrimps that are fragile and require high packaging accuracy.
Dried Shrimp Packaging Machine Advantages
1. New type double parallel line vibrator, stable amplitude;
2. Side drive aluminum box, the accuracy of sensor readings;
3. Weighing type material detection, accurately control the feeding time;
4. Special V-shaped line vibration plate, designed for dried shrimps with small weight materials;
5. The arc-shaped chassis, large R process treatment, and four-sided sealing design make the overall appearance and beauty.
6. The integral chassis and middle enhance the rigidity and strength of the machine, making the stabilization time of the hopper shorter;
Model | GG-LK720 | GG-LK520 |
Film width | max 720mm | max 520mm |
Bag width | 110-350mm | 90-250mm |
Bag length | 100-420mm | 80-350mm |
Packing speed | 10-50bags/min | 10-70bags/min |
Packing range | 150-4000ml | 150-2000ml |
Film thickness | 0.04-0.10mm | 0.04-0.10mm |
Power | 4kw/220v 50-60Hz | 3kw/220v 50-60Hz |
Machine size | 1780*1350*2000mm | 1430*1200*1700mm |
Machine weight | 800kg | 650kg |
Air consumption | 0.8m³/min 0.8mpa | 0.4m³/min 0.6mpa |
Dried shirmp packaging machine features
Servo film transport system, accurate positioning, stable performance of the whole machine, and beautiful packaging;
Multi-station combined weighing is adopted to automatically weigh dried shrimps after drying, which is more efficient.
PLC full computer control system, man-machine interface, touch screen operation is simple and intuitive;
Less manual participation, reducing food contamination channels, and ensuring the safety and sanitation of dried shrimps.
Automatically complete the processes of feeding, metering, filling and bag making, date printing, and finished product output;
Vacuum operation can be realized in the process of automatic feeding, which truly realizes one machine with multiple functions.
The operation process adopts fully automatic rotary operation, with accurate operation, fast speed and high efficiency.
The early warning mechanism is good, which can quickly eliminate equipment failures, reduce losses, and ensure the smooth progress of production.
With automatic detection function: the adjustment of the bag width is controlled by a motor, which has a high weighing accuracy, the maximum weighing error is 3 grams, and the average error is less than 1 gram.
It complies with the sanitary standards of food processing machinery. The parts on the machine that are in contact with dried shrimps and packaging bags are processed with materials that meet food hygiene requirements to ensure the sanitation and safety of dried shrimps.
The fully automated operation realizes the product packaging assembly line operation. The bags are finished bags, and the materials are automatically filled without labor. This improves the production efficiency of dried shrimps and greatly reduces product costs and labor costs.
