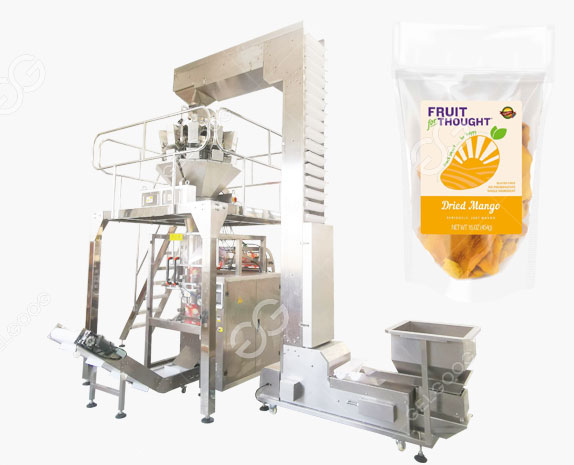

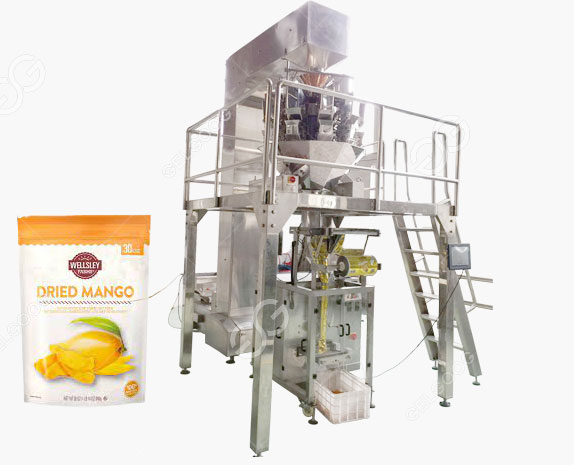

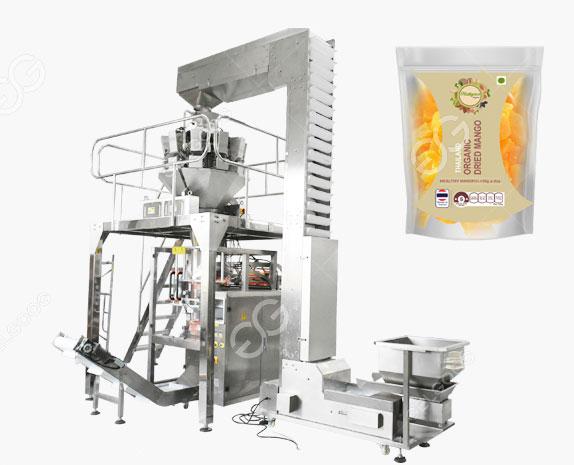

The automatic dry mango fruit packing machine is suitable for the packaging of loose objects that require high measurement accuracy and fragile. The bag types that can be packaged mainly include back seal, gusseted bag, four-side seal, three-side seal, and four-side ironing. Punching device and nitrogen filling device can be installed. Packaged dried mangoes are local specialty snacks in Thailand and the Philippines, which are popular among consumers and extend the shelf life of dried mangoes.
The use of high-precision, high-speed computing multi-head computer combination weighing electronic scale to measure the blanking
High precision and fast speed. Multiple sets of product parameters can be preset. Realize multi-faceted parameter program requirements
A weighing hopper can be set to discharge sequentially to effectively prevent the blockage of dried mangoes
Real-time display of the amplitude of each channel, the weight of each weighing bucket, and better monitoring of the working status of the equipment
The imported PLC computer control system is adopted, and the large touch screen is easy to operate and intuitive;
Complete automatic alarm protection function to minimize loss
All production processes such as automatic bag making, metering, filling, date printing, sealing, cutting, product output, etc.
Automatic detection function, if the bag is not opened or the bag is incomplete, no feeding, no heat sealing, the bag can be reused without wasting dried mango, saving production costs for users.
Model | GG-LK720 | GG-LK520 |
Film width | max 720mm | max 520mm |
Bag width | 110-350mm | 90-250mm |
Bag length | 100-420mm | 80-350mm |
Packing speed | 10-50bags/min | 10-70bags/min |
Packing range | 150-4000ml | 150-2000ml |
Film thickness | 0.04-0.10mm | 0.04-0.10mm |
Power | 4kw/220v 50-60Hz | 3kw/220v 50-60Hz |
Machine size | 1780*1350*2000mm | 1430*1200*1700mm |
Machine weight | 800kg | 650kg |
Air consumption | 0.8m³/min 0.8mpa | 0.4m³/min 0.6mpa |
Control host, advanced design, high precision, fast speed and high efficiency
Z-type material hoist, low noise, fully enclosed, clean and hygienic, automatic feeding.
Carbon steel support platform, all carbon steel, good quality, stable support and high endurance.
The finished product conveyor has low noise, long service life, labor saving and efficiency improvement.
Ten-head computerized combination weigher, all stainless steel, high precision, clean and hygienic, easy to clean
