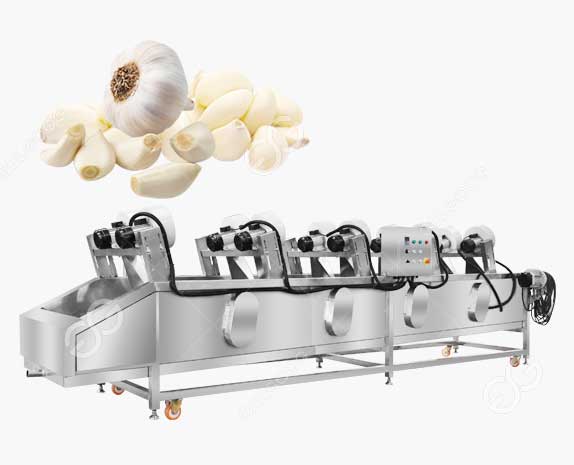

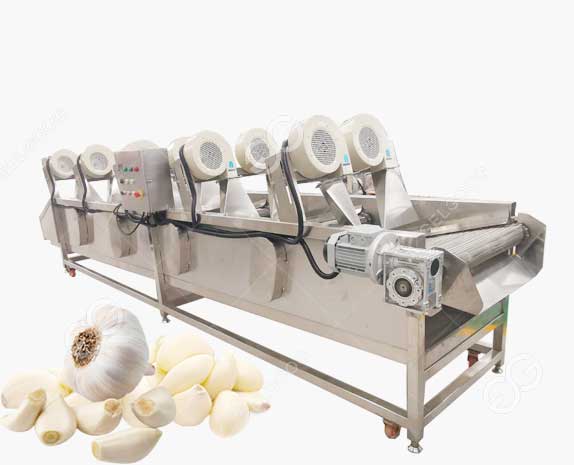

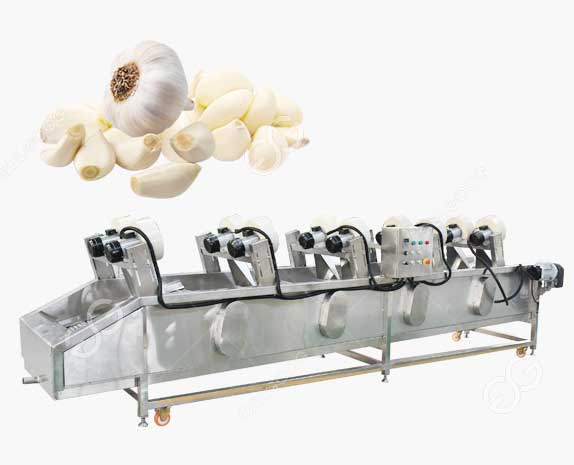

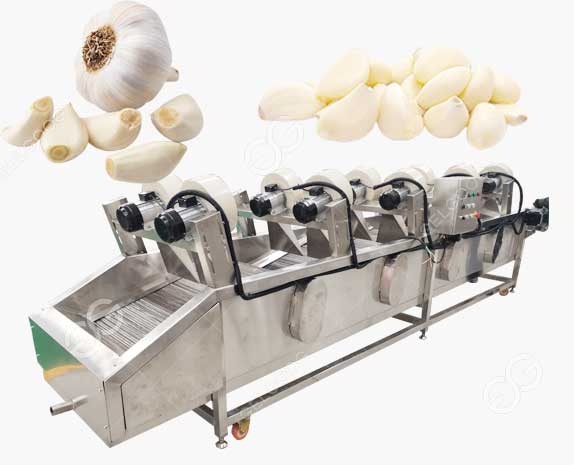

The garlic air drying machine is mainly used to remove the residual water on the garlic surface after cleaning the garlic after the garlic has been broken and peeled, and it can be directly packaged or processed for other garlic. The garlic cleaning machine can realize continuous operation. The garlic air drying machine the airflow generated by the vortex fan, the airflow is generated into an air knife style through the pipes and nozzles, and the airflow is blown directly on the washed garlic. The garlic advances on the conveyor belt. The mesh belt is equipped with hierarchical garlic which can automatically reverse the reverse side of the garlic. Blow-drying, the water removal rate is very high, and the air-drying effect is good.
The garlic air drying machine is mainly used to blow dry the moisture of the garlic after peeling and washing the broken petals, shortening the time of garlic packaging and deep processing;
Using low-power, low-noise fan, the blowing port is in the shape of a wind knife, and the drying air temperature is the usual temperature, which effectively protects the color and quality of the garlic itself;
The garlic air dryer is made of SUS304 stainless steel, so that the garlic can be evenly spread and turned through the intermittent mesh belt conveyor speed and height drop during the conveying process, so that the garlic is air-dried more evenly and thoroughly during the air-drying process.
Model | GG-4000 |
Power | 6kw |
Voltage | 380v |
Weight | 6kg |
Type | Air cooling system |
Dimension | 4000*950*1600(mm) |
Frame body: The whole body is made of SUS304 stainless steel, which meets the national food production safety standards;
Fan: Using large air volume as the fan, the distance between each group of fans and the fan is 1m, the air drying efficiency is high, and the height of the fan can be adjusted freely according to different products.
Stainless steel mesh cover: In order to prevent the garlic from being blown away when it is air-dried, the perforated stainless steel mesh cover can be added to the empty space of the equipment, so that the garlic will only flip inside and not be blown out. The protective cover can be disassembled for easy cleaning.
Transmission system: It is mainly composed of transmission chain, transmission sprocket, bearing seat, driving shaft, driven shaft and mesh belt. The mesh belt is driven by each driven shaft for independent transmission; each time the chain is turned over, the chain is driven independently to reduce the chain Rally, prolong the service life.
The control system of the electronic control system is integrated with the equipment. There is a variable frequency reducer inside, the speed can be adjusted, and the reducer drives the operation of the transmission chain, thereby bringing it to the operation of the mesh belt.
A curtain is added to the discharge end of the equipment, and a stainless steel baffle is added to the feeding end to prevent the materials from running out, and the discharge port can better gather the products.
According to the characteristics of garlic, we are equipped with PP chain plates, which are suitable for bulk and easily damaged products, and play a buffering role during blanking to prevent damage to large products.
