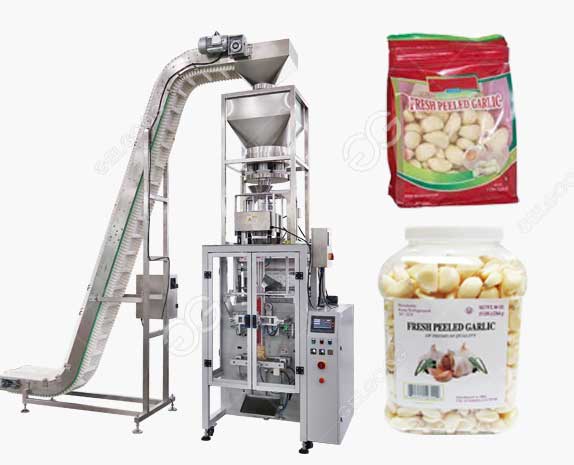

The garlic packing machine uses a weighing method to ensure the packing quality of garlic granules, and integrates the elements of automatic packing to make the peeled garlic packing process smoother. The garlic granule packing machine has a series of automatic functions such as automatic feeding, metering, bag making, filling, sealing, date printing and finished product output. No labor is required, which improves the production efficiency of the enterprise and greatly reduces the cost of garlic granules and labor costs.
The peeled garlic packing machine meets the sanitary standards of food processing machinery. The parts on the machine that are in contact with the garlic granules and the packaging bag are processed with materials that meet the food hygiene requirements to ensure the hygiene and safety of the garlic granules.
Garlic packing machine control system: German Siemens PLC control, simple man-machine interface operation.
The peeled garlic packing machine has an automatic detection function: the adjustment of the bag width is controlled by a motor, which has a high weighing accuracy, the maximum weighing error is 3 grams, and the average error is less than 1 gram.

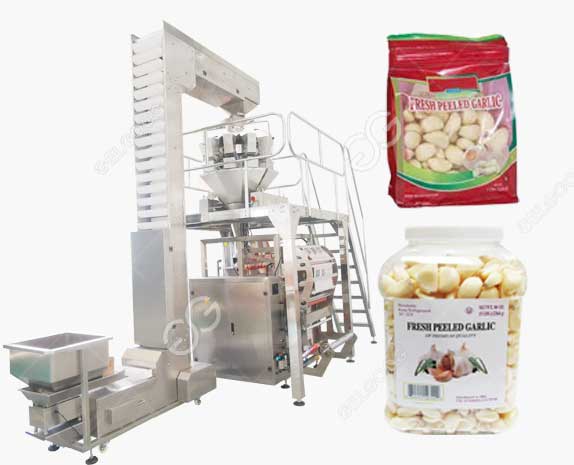

The garlic packing machine adopts multi-station combined weighing, which automatically weighs garlic granules, which is more efficient.
The operation process of the garlic packing machine adopts fully automatic rotary operation, with accurate operation, fast speed and high efficiency.
Less manual participation, reducing the pollution of garlic particles, and ensuring the safety and sanitation of the product.
The garlic packing machine has a good early warning mechanism, which can quickly eliminate equipment failures and ensure the smooth progress of garlic granules packing.
Model | GG-LK720 | GG-LK520 |
Film width | max 720mm | max 520mm |
Bag width | 110-350mm | 90-250mm |
Bag length | 100-420mm | 80-350mm |
Packing speed | 10-50bags/min | 10-70bags/min |
Packing range | 150-4000ml | 150-2000ml |
Film thickness | 0.04-0.10mm | 0.04-0.10mm |
Power | 4kw/220v 50-60Hz | 3kw/220v 50-60Hz |
Machine size | 1780*1350*2000mm | 1430*1200*1700mm |
Machine weight | 800kg | 650kg |
Air consumption | 0.8m³/min 0.8mpa | 0.4m³/min 0.6mpa |
Electronic combination said, precision electronic sensor. Microcomputer automatically calculates the combined set weight
Manipulator device, with corrosion resistance and formability, all white movement to the bag, filling garlic granules
Vibrating feeder, fully automatic feeding. The garlic particles can be continuously sent to the feeding device; it is especially suitable for quantitative packing, and the production process is automated
The bag maker, within a certain range, can adjust the size of the small bag appropriately
The garlic packing machine has a wide range of applications and can meet the packaging requirements of a variety of products.
