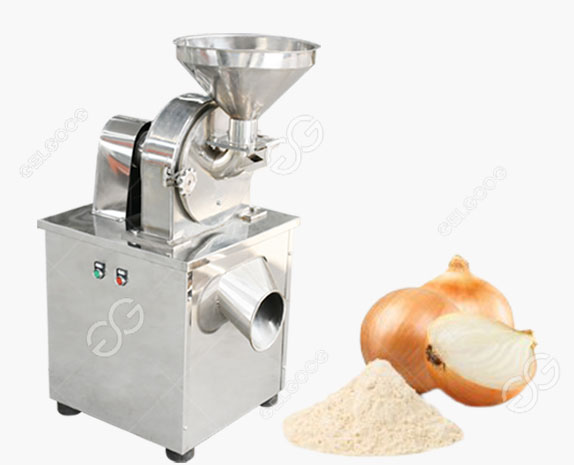

The onion powder making machine is necessary for onion powder making business,it can make process the dry onion rings into onion powder.This onion powder making machine can crush materials with a fineness of 120 mesh and below. Materials with special properties can be treated specially and different configurations can be added.

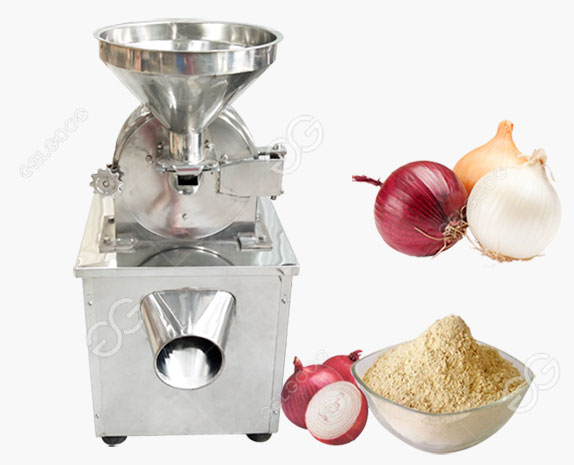

The hopper of the onion grinding machine, all mirror polished.
The discharge port is precisely polished, easy to clean without blocking onion powder.

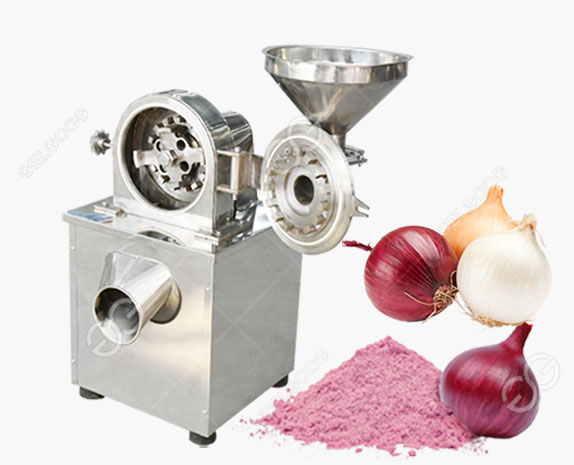

The toothed disc type crushing knife is clean and hygienic, and it is not easy to leave onion powder.
The mesh ring of the dry onion powder making machine can be produced in different finenesses according to customer requirements.
Model | GGS180B/C | GGS20B/C | GGS30B/C | GGS40B/C | GGS50B/C | GGS60B/C |
Capacity KG | 5-20 | 50-100 | 50-200 | 100-400 | 200-500 | 200-800 |
Discharge fineness | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Cutter diameter mm | 150 | 200 | 300 | 350 | 500 | 550 |
monitor rate KW | 1.5 | 4.0 | 5.5 | 11.0 | 15.0 | 18.5 |
Dust removal power KW | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | |
Total Weight KG | 60 | 140 | 220 | 440 | 560 | 620 |
Dust removal weight KG | 110 | 230 | 310 | 560 | 680 | 760 |
Dimensions mm | 450*350*950 | 600*500*1170 | 750*600*1370 | 800*700*1450 | 850*950*1550 | 900*1100*1750 |
Dust removal size mm | 800*500*1200 | 1000*500*1400 | 1200*700*1850 | 1350*900*2000 | 1400*900*2150 | 1600*1100*2300 |
Using the relative movement of the movable toothed disc and the fixed toothed disc, the dried onion slices are impacted and rubbed by the teeth.
Large diameter outlet, large output, cloth bag to collect onion powder. The crushed onion powder automatically enters the collection bag under the action of rotating centrifugal force.
The dry onion powder making machine is designed according to the standard and is made of stainless steel. There is no onion dust flying during the production process. Generally, the machine comes with a dust removal device.
The stainless steel sleek discharge port does not stick to the material, and the discharge is faster and smoother and more convenient to clean. There is no need to worry about the problem of odor.
The industrial onion powder grinder machine is widely used in food factories, spice processing plants, seasoning production factories, and dehydrated vegetable processing plants. It provides an efficient solution for converting dried onion slices or onion flakes into high-quality onion powder with uniform particle size and stable production capacity.
For food factories, the onion powder making machine is mainly used to produce onion powder for instant foods, sauces, soups, snacks, seasoning products, and ready-to-eat meals. The finished onion powder can improve product flavor and extend the application range of onion ingredients.
For spice processing plants, the commercial onion powder machine for sale is an ideal grinding solution for producing natural onion seasoning powder. The machine can achieve consistent grinding results and meet different requirements for powder fineness in spice production.

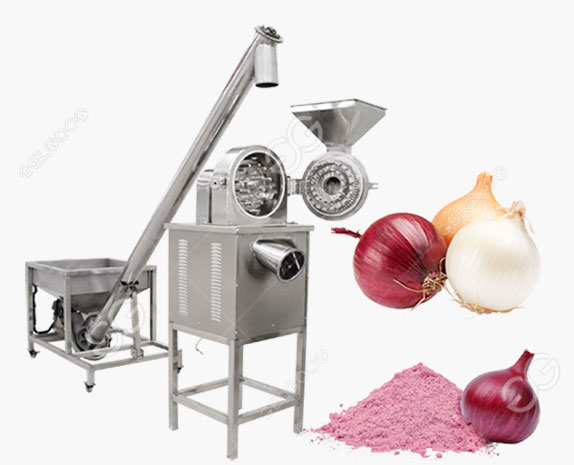

For dehydrated vegetable processing plants, the onion powder grinder machine can be integrated into a complete onion powder production line, including onion peeling, washing, slicing, drying, grinding, and packaging processes, helping manufacturers build a complete production system from fresh onions to finished powder products.
