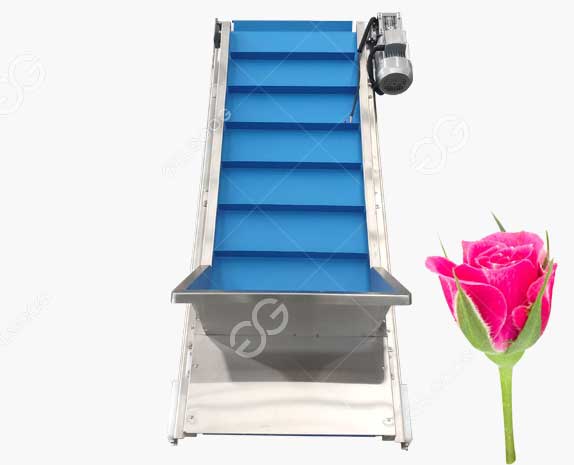

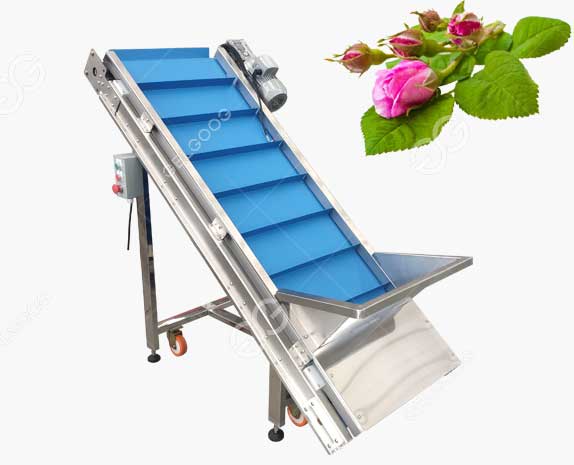

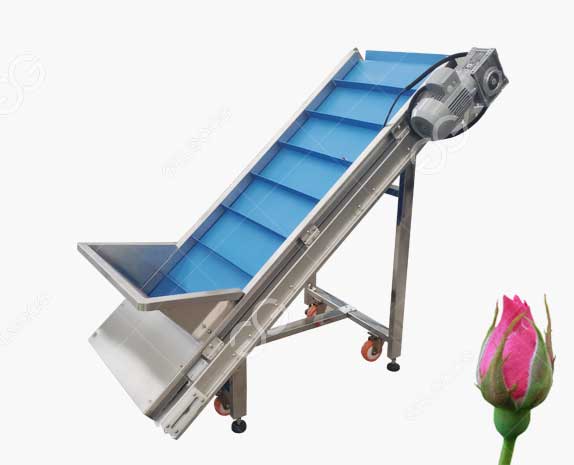

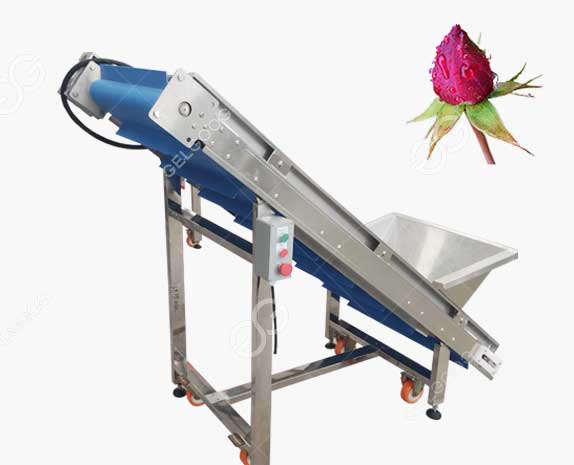

The rose bud transport elevating machine uses a partition conveyor belt to uniformly transport the fresh rose buds into the grading device, and the purpose of uniform feeding is achieved by reasonably determining the size parameters of the partition.
The rose bud sorting conveyor starts with the initial feeding before the rose buds are sorted. The uniform feeding is the preparatory link before the rose bud sorting to prevent the rose buds from interfering with each other during the sorting process. Effective measures, and can reduce the accumulation of rose buds.
Save equipment area;
The tape has high strength and long service life;
large conveying volume, large vertical lifting height;
mechanized transportation, the overall investment cost is low;
low energy consumption, simple structure, easy maintenance;
Model | GG |
Belt width (mm) | 220 |
Hopper volume (L) | 0.42 |
Bucket width (mm) | 220 |
Belt speed (mm) | 1.12 |
Conveying capacity (m3/h) | 7 |
Lifting height (mm) | 2350 |
Power (Kw) | 0.75 |
Dimensions (mm) (L×W×H) | 1060×780×2980 |
The rose bud has a large conveying volume, and the conveying height can be manually adjusted to adjust the slope.
Compared with other conveyors, the noise is smaller, and it is suitable for the occasions where the working environment requires relatively quiet.
The structure is simple, the overall movement is convenient, the maintenance is convenient, the cost is low, and the power consumption is small.
The conveying is stable, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the fresh rose buds;
