We offer a wide range of high quality of equipment & machines for food drying.
+86 18595613260

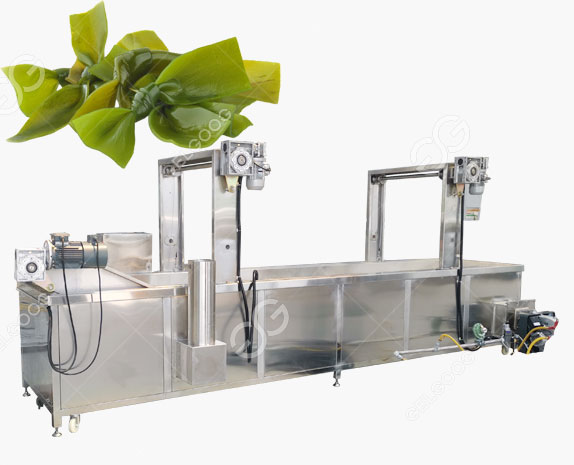

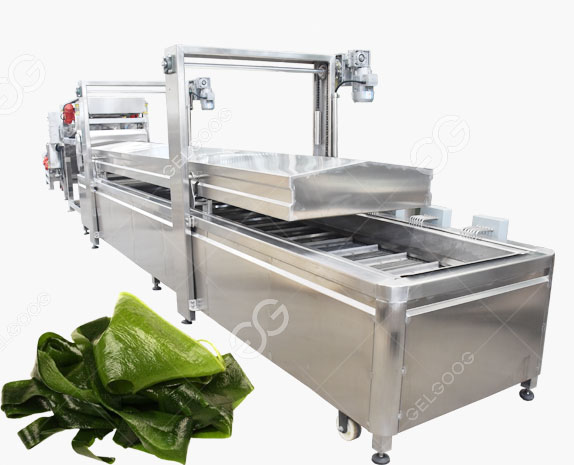

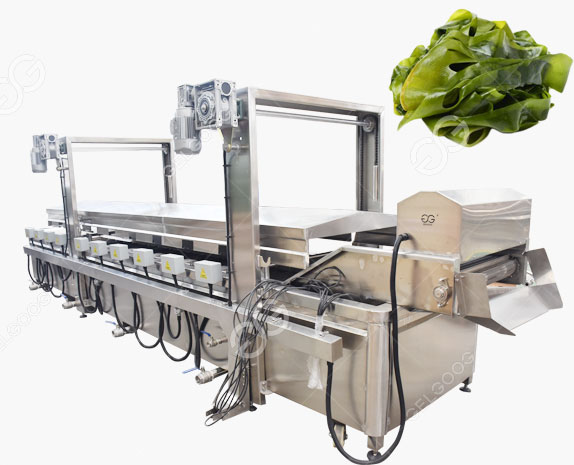

Seaweed blanching machine is the ideal equipment for blanching in kelp processing. The kelp blanching machine integrates blanching and cooling. This machine has the characteristics of rapid deactivation, enzyme-inhibiting color protection and timely dehydration and cooling, which can be completed at one time, so that the kelp maintains the original natural color.
The kelp blanched by the seaweed blanching machine effectively inhibits the activity of enzymes in the kelp to maintain the unique fresh color of the kelp, retain the fragrance, enhance the softness of the cells, and facilitate the evaporation of water, which is the next drying and dehydration process The process requirements lay a good foundation.
Thermal insulation cover, good thermal insulation system, low energy consumption and less energy waste
Intelligent electric control box, the function is clear at a glance, the operation is simple and convenient
Semi-enclosed inlet and outlet, the inlet and outlet positions are semi-enclosed to reduce steam overflow and avoid wasting heat energy.
The whole machine is made of stainless steel, which meets the requirements of food hygiene, corrosion resistance, high temperature resistance, and easy cleaning
Model | Power(KW) | Dimension(MM) | Weight(KG) | Mesh belt width(MM) |
GG-LZE3500 | Conveying 1.5KW Elevating 0.75KW Heating 100KW | 3700*1600*2200 | 750 | 800 |
GG-LZE5000 | Conveying 1.5KW Elevating 0.75KW Heating 120KW | 5200*1600*2200 | 950 | 800 |
GG-LZE6500 | Conveying 1.5KW Elevating 1.5KW Heating 190KW | 6700*1600*2200 | 1100 | 800 |
GG-LZE8000 | Conveying 1.5KW Elevating 1.5KW Heating 255KW | 8200*1600*2200 | 1300 | 800 |
The heating source of this machine is steam heating, with automatic control steam inlet device and surface insulation. Can reduce energy waste.
The transmission system of this machine adopts a speed-adjustable decelerating motor to make the conveying speed of the conveyor belt adjustable, and the blanching time can be adjusted between 3-15min.
The machine adopts SUS304 stainless steel plate type mesh belt for transmission. The mesh belt has the characteristics of high strength, small flexibility, not easy to deform, easy to maintain, etc. The whole machine is balanced in operation and low in noise, which greatly improves work efficiency. When the material is discharged, it is lifted with a mesh belt to directly transport the material out of the equipment.
Generally, the blanched kelp needs to be dried by a strong current air dryer to dry the remaining water on the surface of the kelp, so as not to affect the operation of the next process, reduce the time of manual waiting, and increase the efficiency of the enterprise.
With the development of drying technology, the kelp processing industry has become more mature, the production efficiency has increased, and the production scale has expanded. It can usually be matched with kelp heat pump dryers, opening up a new way for the development of the kelp processing industry.
