We offer a wide range of high quality of equipment & machines for food drying.
+86 18595613260

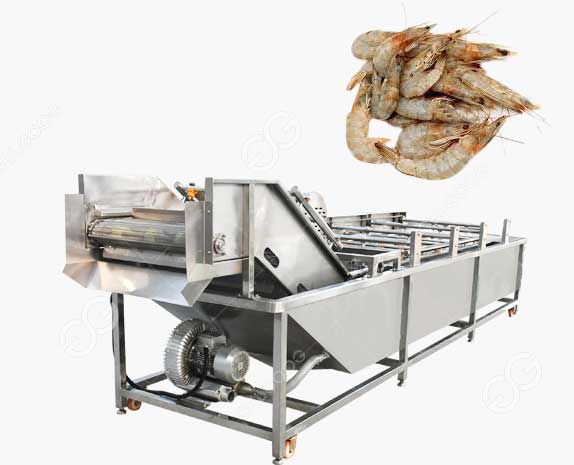

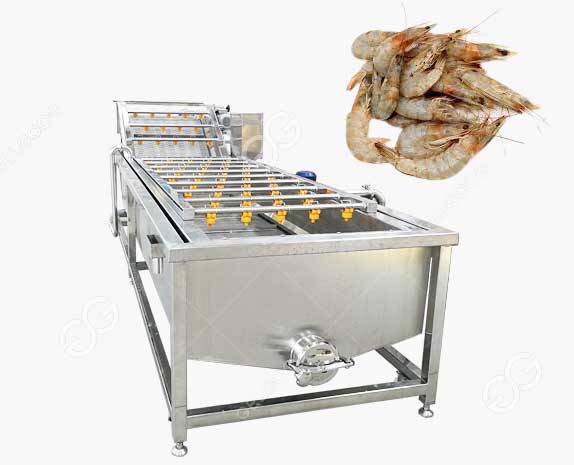

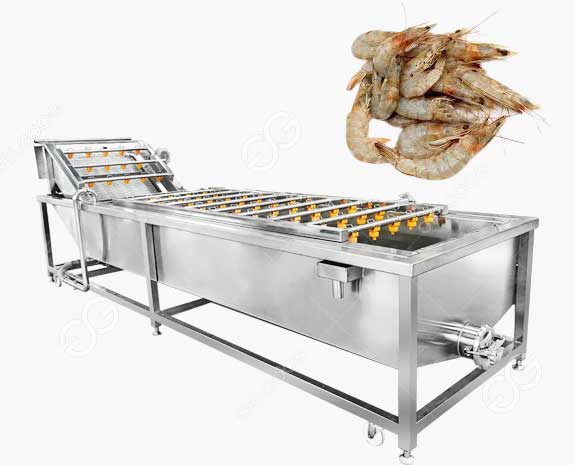

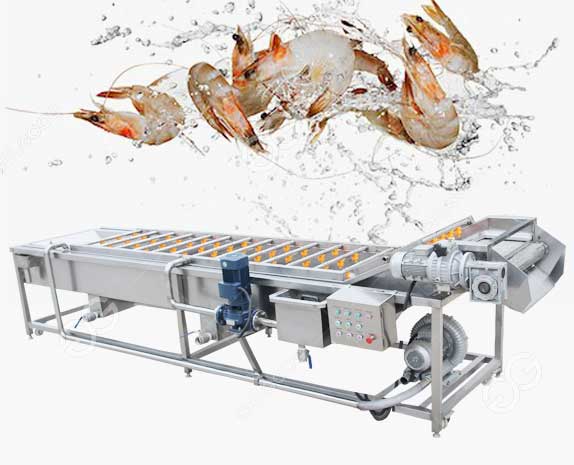

The shrimp washing machine is equipped with a bubble generating device to make the shrimp caught from the sea roll to remove the mucus and silt on the surface of the shrimp. At the same time, an appropriate amount of medicine can be added for disinfection and fixation. The large proportion of the sediment will fall into the outer tank of the washing tank, and the sediment in the outer tank can be treated intensively after washing. It has the characteristics of high cleaning, energy saving, water saving, and stable and reliable equipment.
The principle of the shrimp washing machine is mainly to use the right amount of water in the front part of the box. When the shrimp passes through the box, it will be tumbling under the combined action of the bubble machine and water. When it comes out of the water, it will be cleaned. The latter shrimp are transported out by the chain belt, which does not damage the shrimp and has a long service life. The chain belt is transported to the lifting position, and there is a spray device at the lifting position to externally connect the water source to rinse the shrimp for a second time. Ensure that the shrimp is cleaned.
Save water, electricity, time, cleanliness and sanitation.
No damage to shrimps, high efficiency, small footprint, safe and reliable.
Simple installation, easy operation, convenient maintenance and low energy consumption.
Shrimp Washing Machine | Power(KW) | Size(mm) | Capacity(KG/H) | Weight(KG) | Roller Size(mm) |
GGXM800 | 1.1 | 1600*850*800 | 400 | 220 | 800 |
GGXM1000 | 1.5 | 1800*850*800 | 600 | 260 | 1000 |
GGXM1200 | 1.5 | 2000*850*800 | 800 | 280 | 1200 |
GGXM1500 | 2.2 | 2300*850*800 | 1000 | 320 | 1500 |
GGXM2000 | 3 | 2800*850*800 | 1500 | 420 | 2000 |
GGXM2600 | 4.37 | 3100*850*1450 | 2000 | 600 | 2600 |
According to the characteristics of shrimp, the equipment can be customized. It is cleaned according to the characteristics of it, and it does not damage the shrimp.
The size of the shrimp determines the size of the punching holes on the conveyor chain belt to prevent the shrimp from falling into the outer bladder of the cleaning tank.
Use the equipment to generate a large number of bubbles to agitate the cleaning of the shrimp, and rinse the silt and impurities on the surface of the shrimp. The bubbles generated in the cleaning tank have a certain pressure, which can have a certain force on the surface of the shrimp, and the surface of the shrimp can be cleaned.
The cleaning time of the shrimp in the washing machine pool can be controlled according to its own needs, and the running speed of the chain belt can also be adjusted according to needs.
After cleaning, it is transported to the lifting position, and a spray device is arranged at the lifting position. The device can be externally connected to the tap water for secondary spraying and washing, and the shrimp is cleaned and output. At the same time, the water used for spray cleaning will flow into the cleaning tank to supplement the water source in the cleaning tank.
Remarks are optional: the equipment is in the form of an inner and an outer tank, and the inner tank can be designed as a lifting type, and the inner tank is lifted by a chain or a cylinder. It is convenient to clean the impurities at the bottom. Convenient.
If the quality of the finished prawns is high, the shrimp heads need to be manually removed after the initial cleaning. Use scissors to cut off the shrimp's whiskers and sharper parts, which are the stomach and other organs of the shrimp. Finally, use scissors to cut off the upper end of the shrimp's tail, then open the back of the shrimp and pick out the shrimp thread. You can also use a toothpick to pick the shrimp thread. Finally, the processed shrimps are cleaned again with a shrimp washing machine.
The shrimp washing machine is made of sus304 food grade stainless steel plate, which meets the requirements of food hygiene and safety, has good corrosion resistance and stable operation. It is suitable for Antarctic red shrimp, green shrimp, river prawn, grass prawn, prawn, prawn, lobster, etc. Of shrimps.
