Product
We offer a wide range of high quality of equipment & machines for food drying.

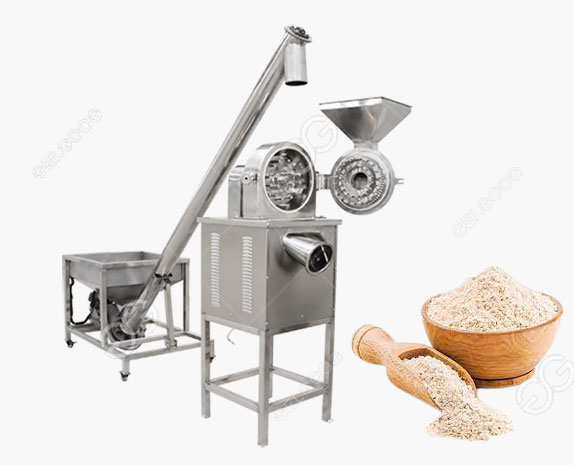

Automatic Yam Powder Flour Making Machine
| Model | GGS20B/C |
| Capacity | 50-100KG/H |
| Voltage | 220V50HZ |
| Size | 600*500*1170 mm |
| Material | Stainless Steel |
Product Introduction >>

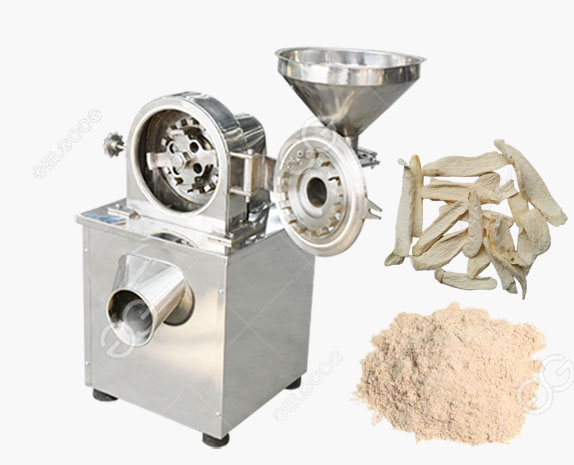

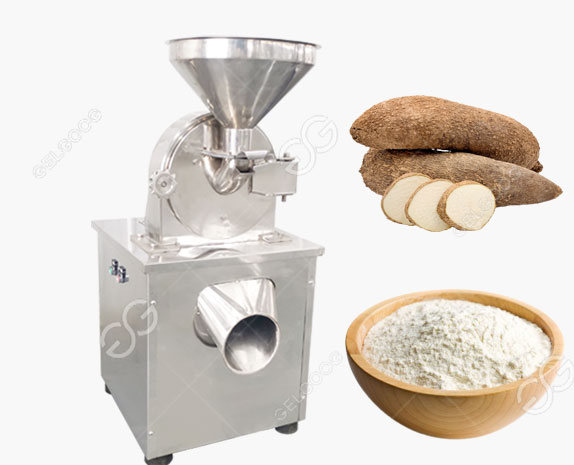

The yam powder making machine is used for the crushing and grinding of dried yam. The fineness is adjusted between 20-120 mesh. It has the advantages of high output, fine particle size, low noise, low energy consumption, simple maintenance, and convenient installation. It is suitable for the crushing and processing of medium, low and high hardness materials such as oily, viscous, heat-sensitive, fibrous (for example: ginger, chili, pepper, oil wheat, almond soybean, star anise, cinnamon).
Advantages >>
Yam Powder Making Machine Advanatges
1. Easy to clean, easy to use, safe and reliable.
2. Strong sealing performance, stable performance, continuous work, saving time and effort.
3. The crushing system adopts cast steel technology, which is strong and durable, and the yam crushing efficiency is high.
Technical Data >>
Yam Powder Grinding Machine Parameter
Model | GGS180B/C | GGS20B/C | GGS30B/C | GGS40B/C | GGS50B/C | GGS60B/C |
Capacity KG | 5-20 | 50-100 | 50-200 | 100-400 | 200-500 | 200-800 |
Discharge fineness | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Cutter diameter mm | 150 | 200 | 300 | 350 | 500 | 550 |
monitor rate KW | 1.5 | 4.0 | 5.5 | 11.0 | 15.0 | 18.5 |
Dust removal power KW | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | |
Total Weight KG | 60 | 140 | 220 | 440 | 560 | 620 |
Dust removal weight KG | 110 | 230 | 310 | 560 | 680 | 760 |
Dimensions mm | 450*350*950 | 600*500*1170 | 750*600*1370 | 800*700*1450 | 850*950*1550 | 900*1100*1750 |
Dust removal size mm | 800*500*1200 | 1000*500*1400 | 1200*700*1850 | 1350*900*2000 | 1400*900*2150 | 1600*1100*2300 |
Product Features >>
Yam Flour Making Machine Features
The yam flour machine is equipped with a cooling device to reduce the temperature of the machine and ensure the quality of the finished yam powder.
The stainless steel pulverizer is a high-speed machine, and the yam powder collection chamber adopts a fully enclosed sound-absorbing structure, which can effectively reduce the working noise.
It is made of stainless steel and has strong wear-resistance and corrosion-resistance characteristics. It is suitable for processing food, miscellaneous grains, chemicals and corrosive materials.
